MOT’s ELEVATORS are constructed of high-quality alloy steel and heat-treated for maximum strength and durability. Our elevators are manufactured to the highest standards of quality and certified per API 8C Specifications (API Monogram Stamped).

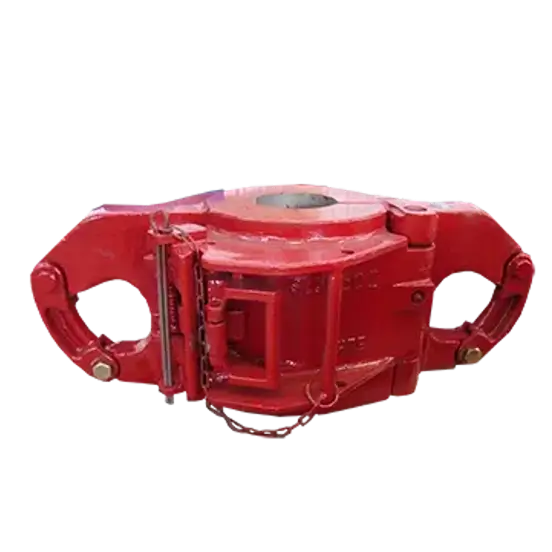

SLX Side Door Elevators are designed for all sizes of casing up to 30”, with load ratings ranging from 150 tons to 350 tons.
| SLX Elevators | |
|---|---|
| 4-1/2" - 20" | 150 Ton |
| 4-1/2" - 30" | 250 Ton |
| 6-5/8" - 14" | 350 Ton |
The Y series of Elevators are center latch, tubing elevators made to catch collar type or integral joint tubing. The models used for tubing are the MYT, YT, and HYT; the HYC is used for casing.
“MYT” Slip Type Tubing Elevator
Range: 1.315” - 2-3/8” / 40Ton
“YT” Slip Type Tubing Elevator
Range: 2-3/8” - 3-1/2” / 75 Ton
“HYT” Slip Type Tubing Elevator
Range: 2-3/8” - 3-1/2” / 150 Ton
“HYC” Slip Type Casing Elevator
Range: 3-1/2” - 7-5/8” / 200 Ton
The TA Style Elevators are for use on tubing, casing and drill collars. These elevators are balanced for easy handling with safety lock and latch and guarded operating handles. Sizes range from 35 to 150 Ton and cover all size tubular up to 11-1/4″.
“TA” Style Elevator For Tubing And Casing
2-3/8” – 8-5/8” / 35Ton - 150Ton

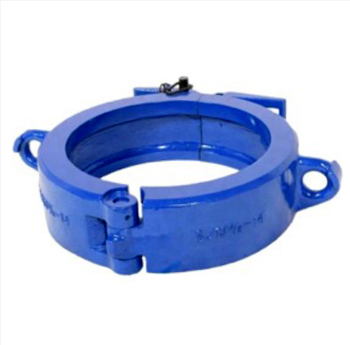

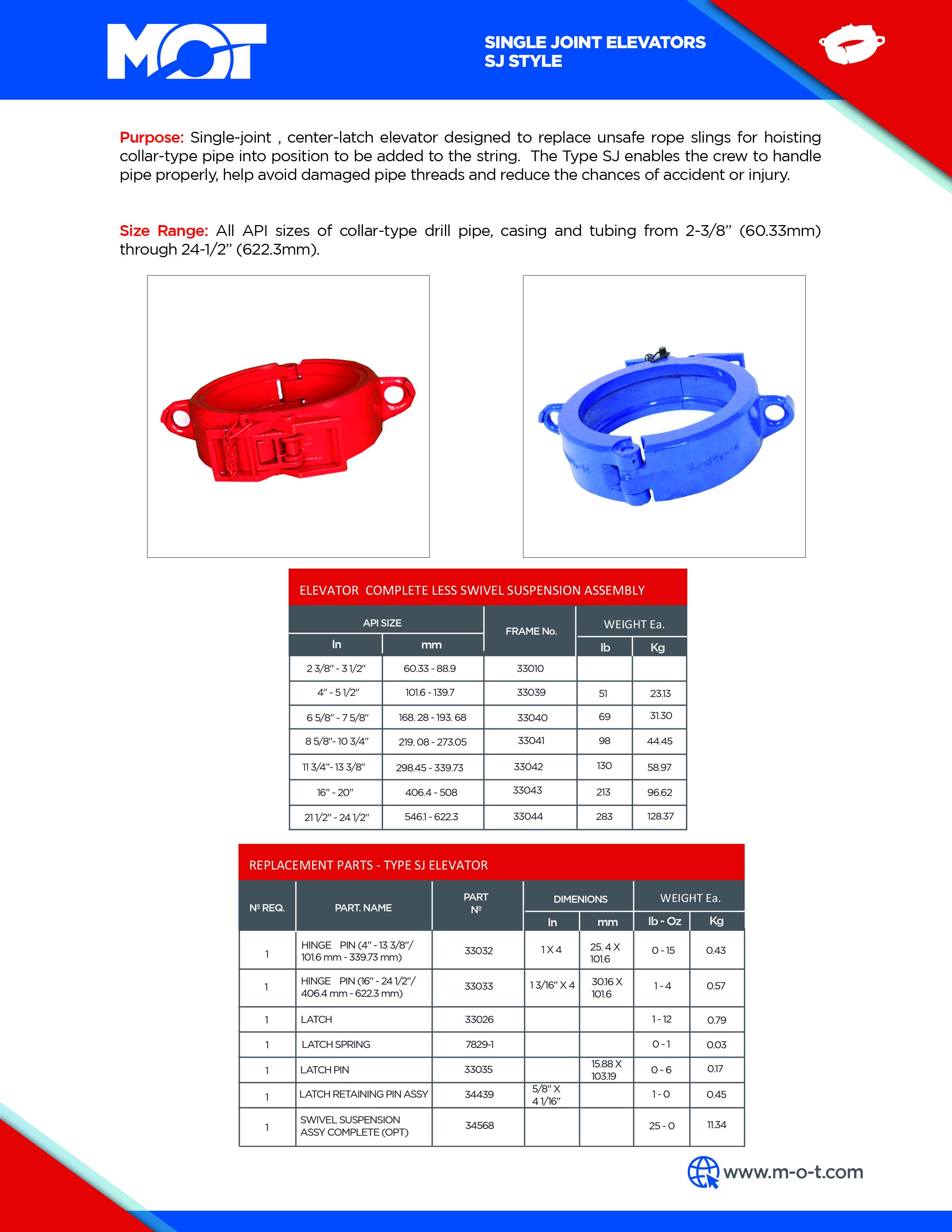

Designed to replace unsafe rope slings for hoisting collar-type pipe into position to be added to the string. The Type SJ enables the crew to handle pipe properly, help avoid damaged pipe threads and reduce the chances of accident or injury.
