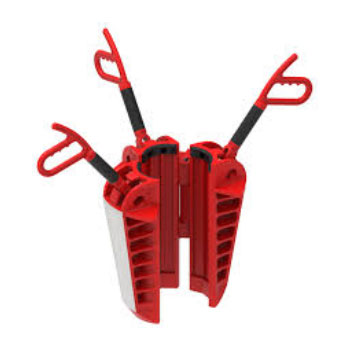

SDS, SDML, and SDXL Rotary Slips are for use in API standard insert bowls. Featuring better contact and distribution of load on drill pipe thru a superior wraparound configuration and unique insert design, these slips prevent bottlenecking and gouging damage. The buttress design of the body segments provides great strength while minimizing weight for ease of handling.
Today's deeper drilling calls for long and heavy casing strings. MOT has slips to handle any casing job.

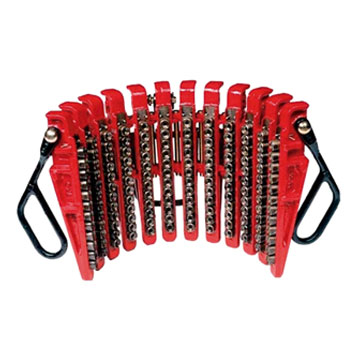

MOT CMS-XL / CP-S slips are manufactured from drop forgings, reinforced to take severe service. The self centering full wraparound grip prevents damage to casing. With certain simple adjustments, the CMS-XL can accommodate casing from 6-5/8 to 30 inches OD. All MOT slips have an API taper of 4 in./ft on the diameter.

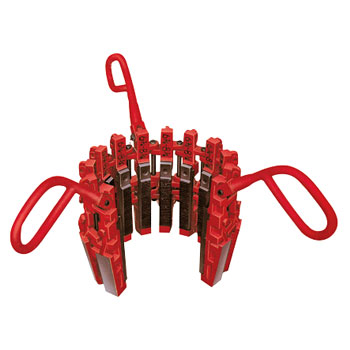

MOT drill collar slips provide superior holding power. Each slip segment is a rugged drop forging, with an extra long back to provide maximum support to the circular button gripping elements. Full wraparound design and circular buttons assure positive holding and slip setting. Drill collar slips are flat on top to accommodate the Safety Clamp. All DCS slips have an API taper of 4 in./ft on the diameter.
